Railway Station Building Scanning

The project deals with the construction documentation of the railway station buildings in Čáslav, Prostějov.

Area: 1 800 m2 (Čáslav), 1 680 m2 (Radotín), 3 700 m2 (Prostějov)

For more information, scroll

Detailed description

The project deals with the construction documentation of the railway station building in Čáslav and Prostějov. The client requested a project of the actual construction design to subsequently draw up documentation for the reconstruction of this building or documentation for the removal of the building. The software processing was carried out Trimble Business Center, Autodesk Recap, Revit, Autocad.

Output Data Format: DWG

Object Floor Plans

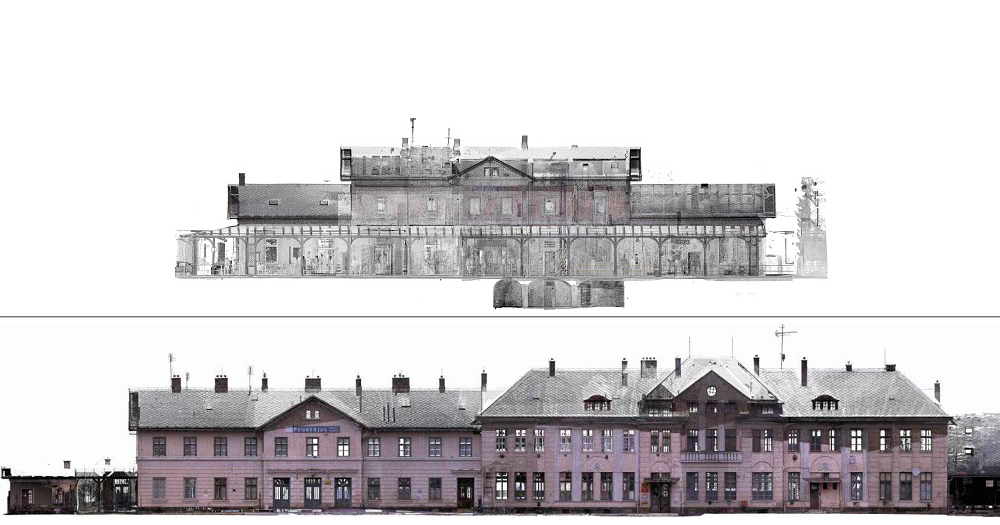

Point cloud of buildings

Object views

Request a sample of the output data

or contact us directly.

Objectives and Benefits

High precision in object processing
Correctness check using point cloud
No need for additional surveying

‍

Advantages of object scanning

High precision survey of the railway station building
Determination of the detailed properties and general geometry of the building
Possibility to measure the thickness of the individual elements and type of joints

Technologies used

Trimble SX10

The scanning total station is an innovative solution in the field of mapping, engineering, and surveying worldwide, setting new standards for surveying instruments.

FARO Focus M

The FARO Focus M Laser Scanner is a powerful high-speed static laser scanner designed specifically for short distance scanning applications in confined spaces.
